May Isle Cottage

https://www.johntee.com/web/image/product.template/151/image_1920?unique=0431681

2,920.00 2920.0 USD 2,920.00

0.00

  • Plan Package
  • Foundation

This combination does not exist.

Plan Details

Specifications


Floors: 2
Bedrooms: 3
Bathroom: 3.5
Foundation(s): Crawlspace, Walkout Basement

Square Feet

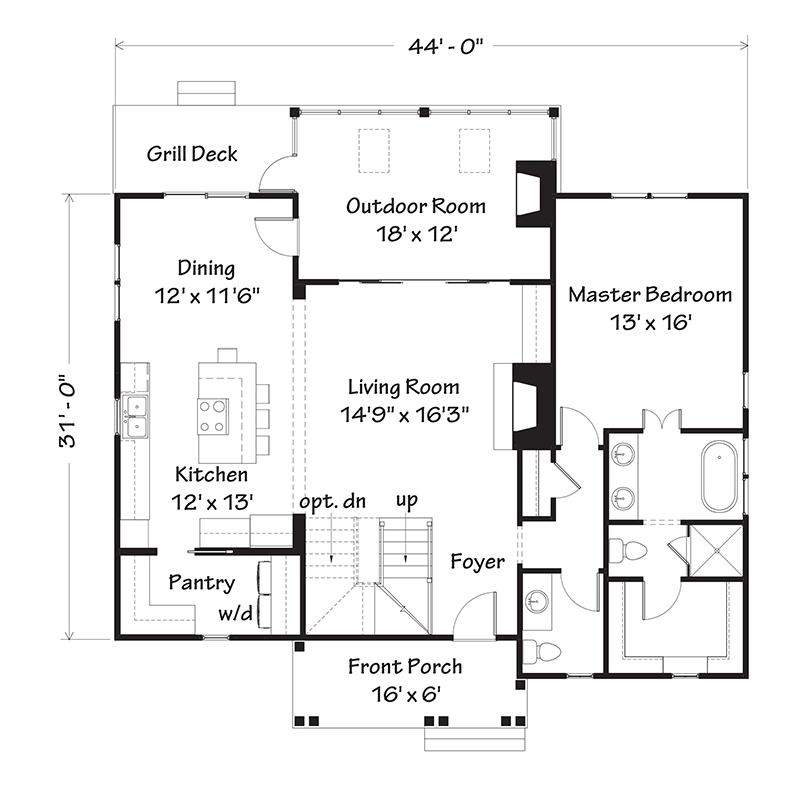

Main Floor: 1,301

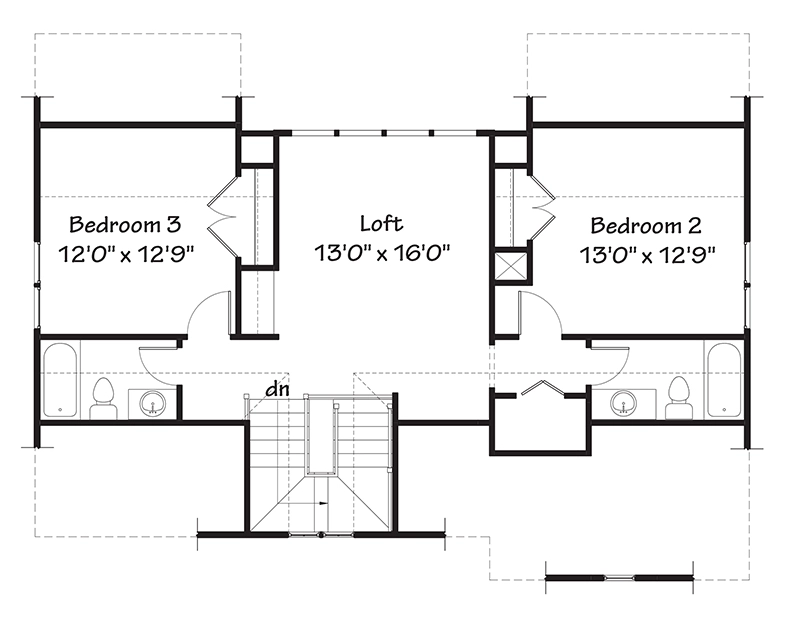

Upper Floor: 804

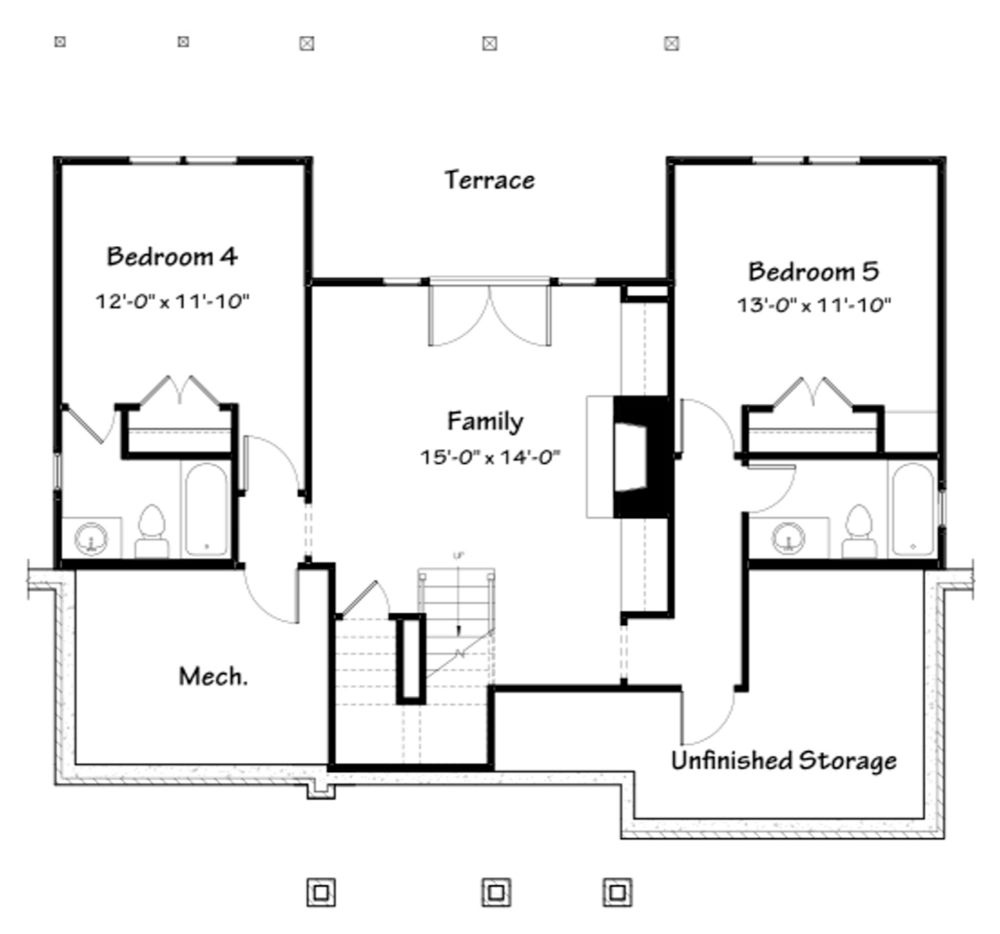

Lower Floor: 947
Total Conditioned: 2,105
Front Porch: 95
Screened Porch: 218

Dimensions


Width: 44'
Depth: 43'
Height: 24'
House Levels:
Level Name Ceiling Heights
2nd Floor 9'-1"
Main Floor 9'-1"
Lower Level 9'-9"

Construction


Wall Construction: 2x4
Exterior Finish: Shake, Board & Batten
Roof Construction: Rafter
Roof Pitch: 12:12

Features


Kitchen: Island, Snack, Pantry
Master Suite: Tub, Double Sink, Shower, Walk-in Closet
Additional: Fireplace, Loft, Porch, Deck

Description


An outdoor room and grill deck make all-season living possible in May Isle Cottage. Three comfortable bedrooms and a versatile upstairs loft that can become a bonus space for family and friends complete the layout.

CAD File
Source drawing files of the plan. This package is best provided to a local design professional when customizing the plan with architect.

PDF Plan Set
Downloadable file of the complete drawing set. Required for customization or printing large number of sets for sub-contractors.

Construction Set
Five complete sets of construction plans, when building the house as-is or with minor field adjustments. This set is stamped with a copyright.

Pricing Set
Recommended for construction bids or pricing. Stamped "Not For Construction". The purchase price can be applied toward an upgrade to other packages of the same plan.

Planning Set
For planning purposes only and Stamped "Not for Construction." This set is ideal for planning modifications or verifying furniture sizes in rooms.


Specifications

Plan Package CAD File or PDF Plan Set or Construction Set - 5 Sets or Pricing Set - 1 Set or Planning Set or Materials List
Foundation Crawlspace or Walkout Basement
