Sugar Hill

https://www.johntee.com/web/image/product.template/197/image_1920?unique=0049db8

Details: 2,534 Sq Ft, 3 Bedrooms, 3.5 Baths

3,315.00 3315.0 USD 3,315.00

0.00

Not Available For Sale

  • Plan Package
  • Additional Options

This combination does not exist.

Add to cart
Additional Options: Full Reverse (Right Reading)

Specifications


Floors: 2
Bedrooms: 3
Bathrooms: 3.5
Foundation(s): Crawlspace

Square Feet

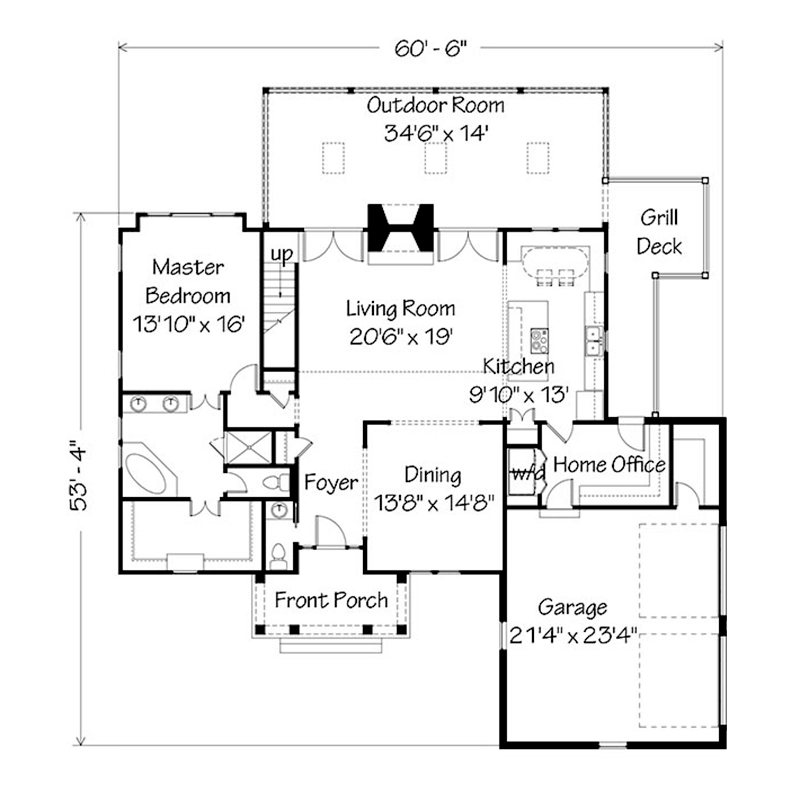

Main Floor: 1,690

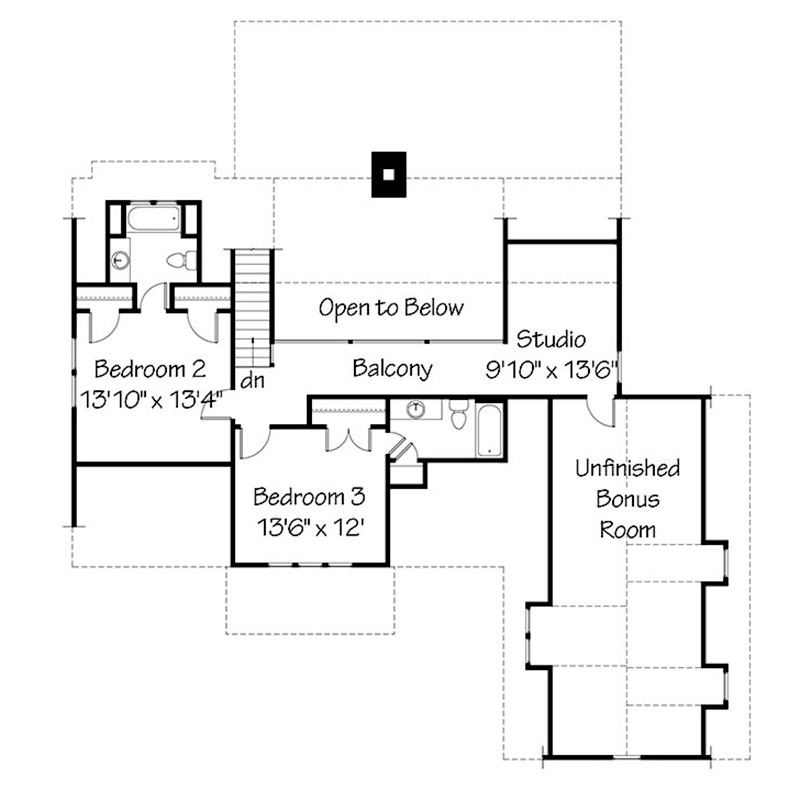

Upper Floor: 844
Total Conditioned: 2,534
Future Space: 481
Front Porch: 106
Rear Porch: 655

Dimensions


Width: 60'-6"
Depth: 65'-10"
Height: 24'

House Levels


Level Name Ceiling Heights
Main Floor 10'-0"

Construction


Wall Construction: 2x4
Exterior Finish: Shake, Board & Batten, Stone
Roof Construction: Rafter
Roof Pitch: 12:12

Features


Kitchen: Island, Snack, Breakfast Nook
Master Suite: Tub, Double Sink, Shower, Sitting Area, Private Toilet, Walk-in Closet
Additional: Fireplace, Porch, Bonus Room, Deck, Home Office/Study

Garage


Type Size
Attached 2 - Stall

Description


Shingles and stone blend to form this garden cottage that evokes a simpler lifestyle. With a comfortable and open floor plan, the home has a large dining room ideal for family gatherings.

"It's important to use every inch of space these days," says architect John Tee. "The living room, with a vaulted ceiling, opens to the family-style kitchen, which is perfect for entertaining and informal dining."

CAD File
Source drawing files of the plan. This package is best provided to a local design professional when customizing the plan with architect.

PDF Plan Set
Downloadable file of the complete drawing set. Required for customization or printing large number of sets for sub-contractors.

Construction Set
Five complete sets of construction plans, when building the house as-is or with minor field adjustments. This set is stamped with a copyright.

Pricing Set
Recommended for construction bids or pricing. Stamped "Not For Construction". The purchase price can be applied toward an upgrade to other packages of the same plan.

Planning Set
For planning purposes only and Stamped "Not for Construction." This set is ideal for planning modifications or verifying furniture sizes in rooms.
