New Willow Grove

Details: 3,442 Sq Ft, 4 Bedrooms, 4.5 Baths

$ 1,930.00 1930.0 USD $ 1,930.00

$ 0.00

Plan Package
- PDF Plan Set + $ 1,930.00
- Construction Set - 5 Sets + $ 1,415.00
- Pricing Set - 1 Set + $ 1,135.00
- Planning Set + $ 320.00
Additional Options

This combination does not exist.

Add to cart

Floor Plan Features of the New Willow Grove

Specifications

Floors: 2

Bedrooms: 4

Bathrooms: 4.5

Foundation(s): Crawlspace

Square Feet

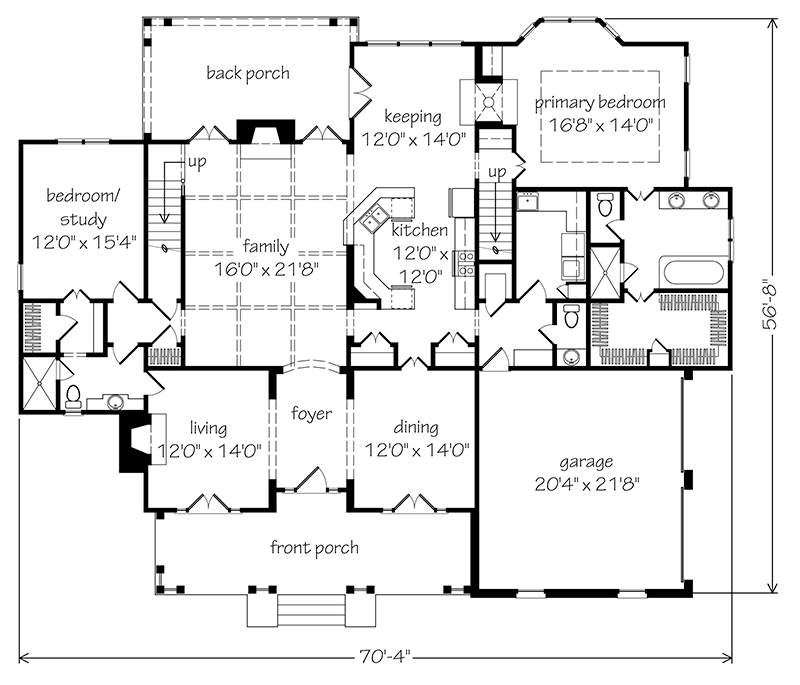

Main Floor: 2,437

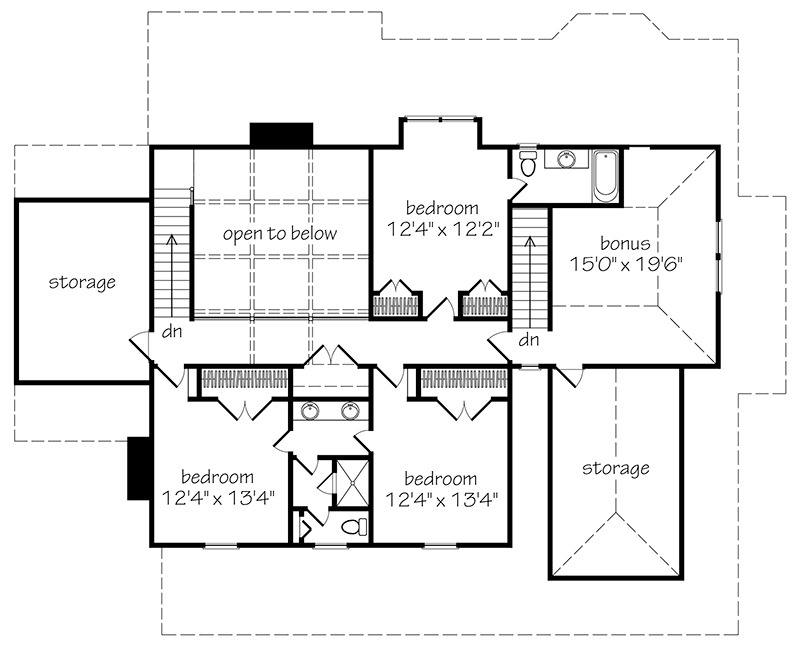

Upper Floor: 1,005

Total Conditioned: 3,442

Front Porch: 266

Rear Porch: 227

Dimensions

Width: 70'-4"

Depth: 56'-8"

Height: 29'

House Levels

Level Name	Ceiling Heights
Upper Floor	8'-4"

Construction

Wall Construction: 2x4

Exterior Finish: Shake, Stone

Roof Construction: Rafter

Roof Pitch: 8:12, 10:12

Features

Kitchen: Snack, Pantry

Master Suite: Tub, Double Sink, Shower, Sitting Area, Double Doors, Private Toilet, Walk-in Closet, Fireplace

Additional: Fireplace, Loft, Porch, Bonus Room, Study

Garage

Type	Size
Attached	2 - Stall

Description

Relatively compact footprint of 70-feet by 56-feet, New Willow Grove fits nicely into any new neighborhood. Mixing the simplicity of Southern architecture with a sophisticated contemporary layout, this design offers a multitude of conveniences in just over 3,300 square feet.

Favorite features include two bedrooms on the main level, formal and family living spaces and a spacious kitchen with separate keeping room and easy access to the rear porch.

Three additional bedrooms and two baths occupy the upstairs plan with an additional 480 square foot bonus room as well as plenty of attic storage space.

CAD File
Source drawing files of the plan. This package is best provided to a local design professional when customizing the plan with architect.

PDF Plan Set
Downloadable file of the complete drawing set. Required for customization or printing large number of sets for sub-contractors.

Construction Set
Five complete sets of construction plans, when building the house as-is or with minor field adjustments. This set is stamped with a copyright.

Pricing Set
Recommended for construction bids or pricing. Stamped "Not For Construction". The purchase price can be applied toward an upgrade to other packages of the same plan.

Planning Set
For planning purposes only and Stamped "Not for Construction." This set is ideal for planning modifications or verifying furniture sizes in rooms.
