Plan Details


Floors: 2
Bedrooms: 4
Bathroom: 5.0
Foundation(s): Daylight/Walkout Basement

Square Feet

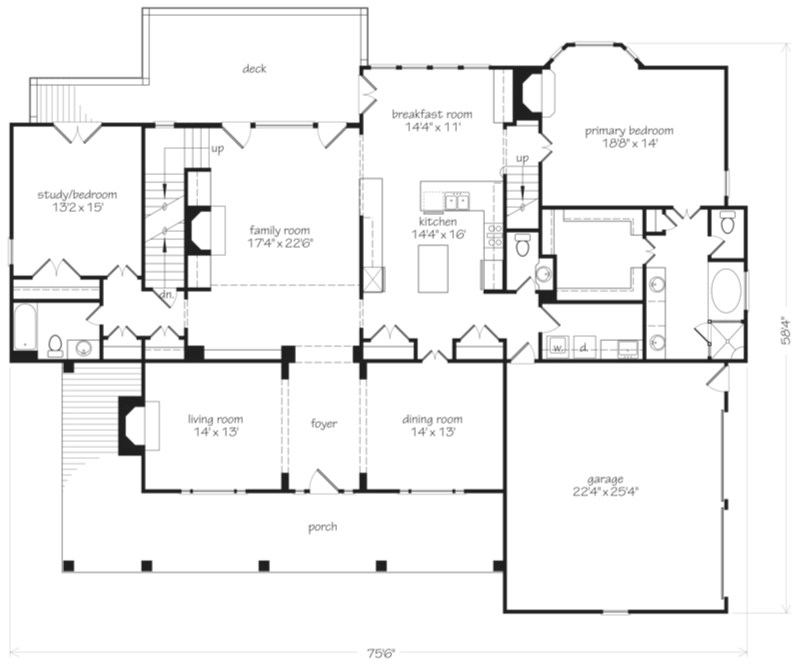

Main Floor: 2,558

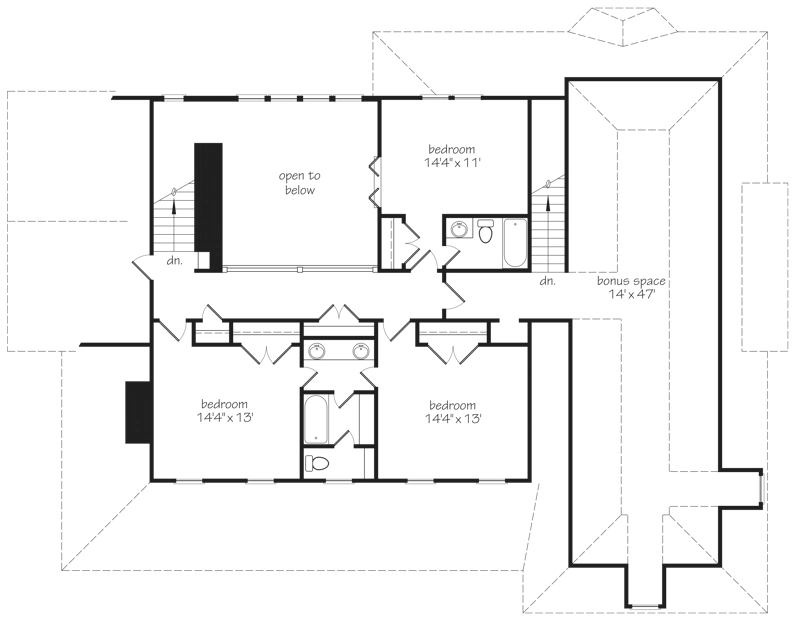

Upper Floor: 1,002
Lower Floor: 2,558
Total Conditioned: 3,560
Future Space: 714


Width: 76'
Depth: 62'-2"
Height: 29'
House Levels:
Level Name Ceiling Heights
Upper Floor 8'-4"


Wall Construction: 2x4
Exterior Finish: Brick, Lap Siding
Roof Construction: Rafter
Roof Pitch: 10:12, 12:12


Kitchen: Island, Pantry, Breakfast Nook
Master Suite: Tub, Double Sink, Shower, Sitting Area, Double Doors, Private Toilet, Walk-in Closet, Fireplace
Additional: Fireplace, Porch, Bonus Room, Deck, Study
Type Size
Attached 2 - Stall


Fireplaces located in family and living rooms and master bedroom. Study on first floor works as a guestroom with its full bath. Family room, breakfast room, and kitchen have an open floor plan. Unfinished bonus space is found in area above master bedroom and garage.

CAD File
Source drawing files of the plan. This package is best provided to a local design professional when customizing the plan with architect.

PDF Plan Set
Downloadable file of the complete drawing set. Required for customization or printing large number of sets for sub-contractors.

Construction Set
Five complete sets of construction plans, when building the house as-is or with minor field adjustments. This set is stamped with a copyright.

Pricing Set
Recommended for construction bids or pricing. Stamped "Not For Construction". The purchase price can be applied toward an upgrade to other packages of the same plan.

Planning Set
For planning purposes only and Stamped "Not for Construction." This set is ideal for planning modifications or verifying furniture sizes in rooms.
