|Level Name||Ceiling Heights|

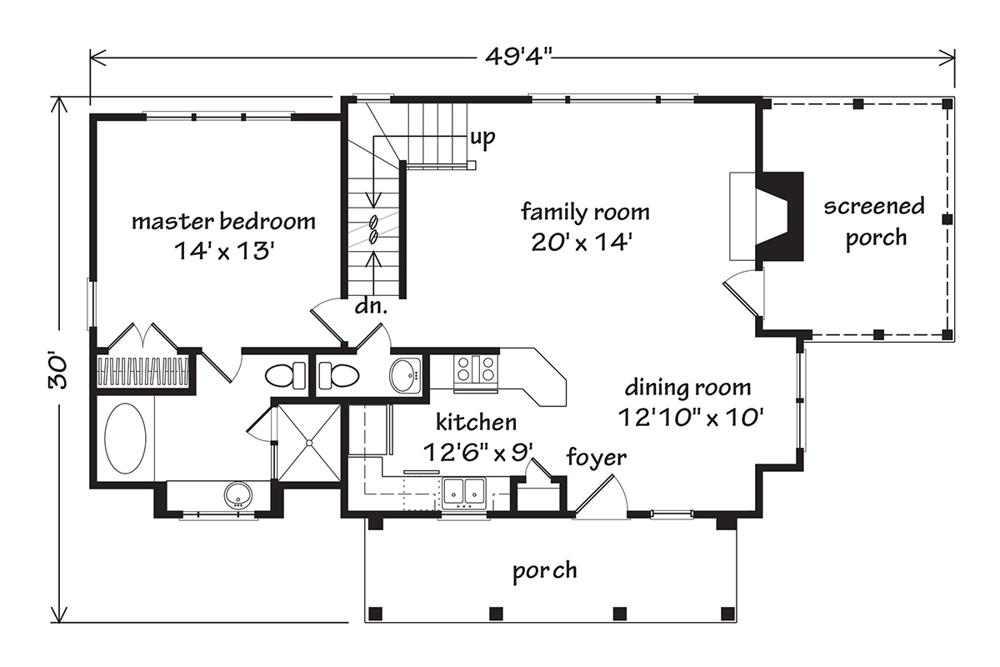

An open floor plan connects the dining room, kitchen, and living room. The spacious master bedroom is located on the first floor. An adjacent bath offers amenities such as a garden tub and separate shower.

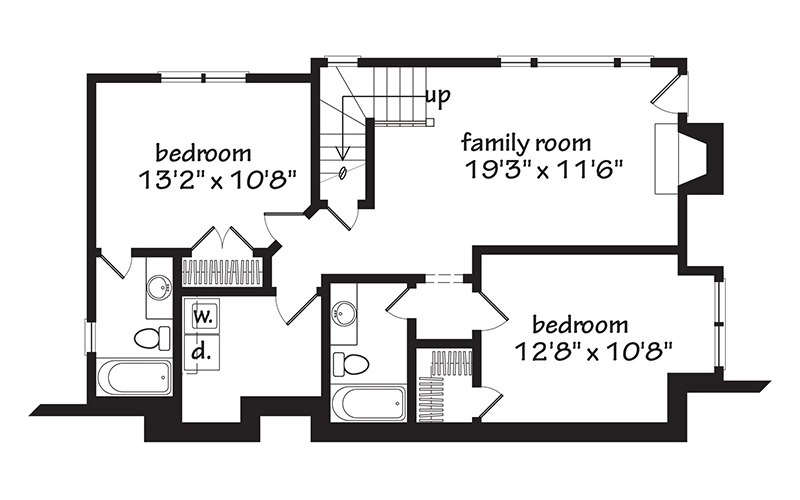

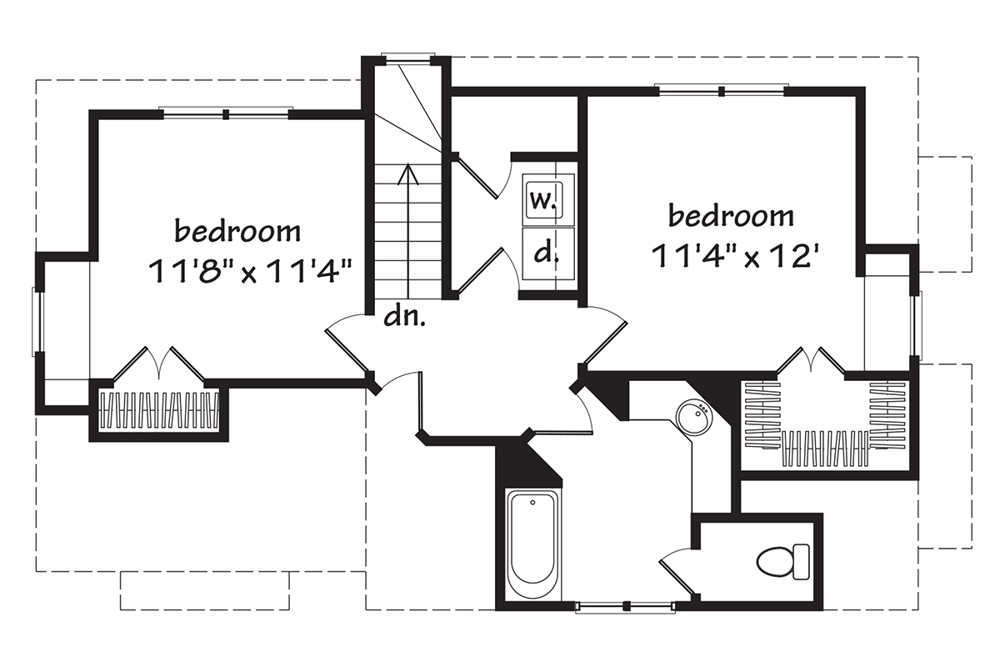

Optional terrace and loft levels are included with the plans. The terrace level, with 870 square feet, is perfect for a sloping or hilly lot. The loft area, with 468 square feet, is open to look down on the second floor. With an additional bath, it can provide a child's play area or a teenager's retreat.
Living room has a fireplace and access to a screened porch.
Source drawing files of the plan. This package is best provided to a local design professional when customizing the plan with architect.
PDF Plan Set
Downloadable file of the complete drawing set. Required for customization or printing large number of sets for sub-contractors.
Five complete sets of construction plans, when building the house as-is or with minor field adjustments. This set is stamped with a copyright.
Recommended for construction bids or pricing. Stamped "Not For Construction". The purchase price can be applied toward an upgrade to other packages of the same plan.
For planning purposes only and Stamped "Not for Construction." This set is ideal for planning modifications or verifying furniture sizes in rooms.
|Plan Package||CAD File or PDF Plan Set or Construction Set - 5 Sets or Pricing Set - 1 Set or Planning Set|
