Mandeville Place

https://www.johntee.com/web/image/product.template/150/image_1920?unique=bbfc362

Details: 2,640 Sq Ft, 3 Bedrooms, 3 Baths

1,700.00 1700.0 USD 1,700.00

0.00

Not Available For Sale

  • Plan Package
  • Additional Options

This combination does not exist.

Add to cart

Specifications


Floors: 1
Bedrooms: 3
Bathrooms: 3.0
Foundation(s): Crawlspace

Square Feet

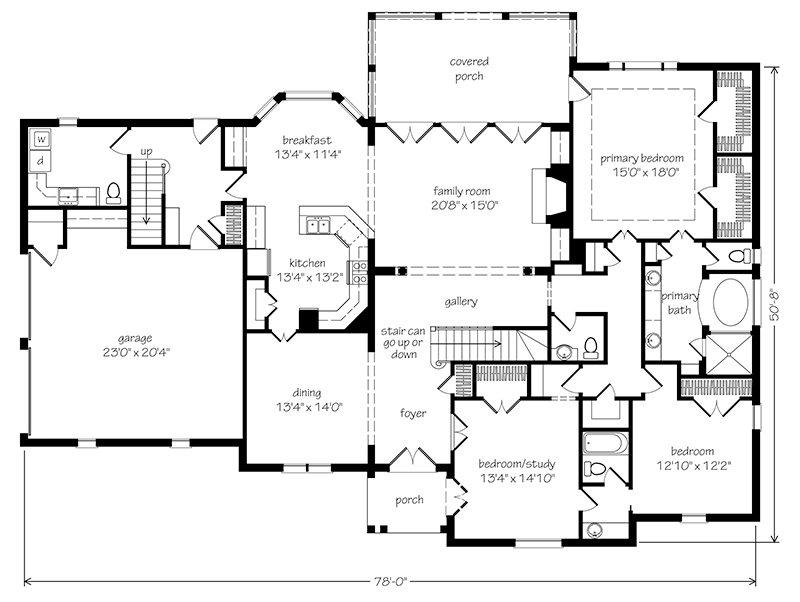

Main Floor: 2,640
Total Conditioned: 2,640
Future Space: 1,059
Front Porch: 64
Rear Porch: 249

Dimensions


Width: 56'-8"
Depth: 78'
Height: 29'

Construction


Wall Construction: 2x4
Exterior Finish: Lap Siding, Stone
Roof Construction: Rafter
Roof Pitch: 12:12, 16:12

Features


Kitchen: Snack, Pantry, Breakfast Nook
Master Suite: Tub, Double Sink, Shower, Porch, Double Doors, Private Toilet, Walk-in Closet
Additional: Fireplace, Porch, Bonus Room

Garage


Type Size
Attached 2 - Stall

Description


CAD File
Source drawing files of the plan. This package is best provided to a local design professional when customizing the plan with architect.

PDF Plan Set
Downloadable file of the complete drawing set. Required for customization or printing large number of sets for sub-contractors.

Construction Set
Five complete sets of construction plans, when building the house as-is or with minor field adjustments. This set is stamped with a copyright.

Pricing Set
Recommended for construction bids or pricing. Stamped "Not For Construction". The purchase price can be applied toward an upgrade to other packages of the same plan.

Planning Set
For planning purposes only and Stamped "Not for Construction." This set is ideal for planning modifications or verifying furniture sizes in rooms.
