Plan Details

Specifications


Floors: 2
Bedrooms: 4
Bathroom: 3.5
Foundation(s): Crawlspace

Square Feet


Main Floor: 2,511
Upper Floor: 354
Total Conditioned: 2,864
Front Porch: 288
Rear Porch: 234

Dimensions


Width: 80'
Depth: 79'-4"
House Levels:
Level Name Ceiling Heights
2nd Floor 9'-1"
Main Floor 9'-1"

Construction


Wall Construction: 2x4
Exterior Finish: Lap Siding
Roof Construction: Rafter
Roof Pitch: 10:12, 8:12

Features


Kitchen: Island, Snack, Breakfast Nook
Master Suite: Tub, Double Sink, Shower, Double Doors, Private Toilet, Walk-in Closet
Additional: Fireplace, Porch, Patio, Office
Garage:
Type Size
Detached 2 - Stall

Description

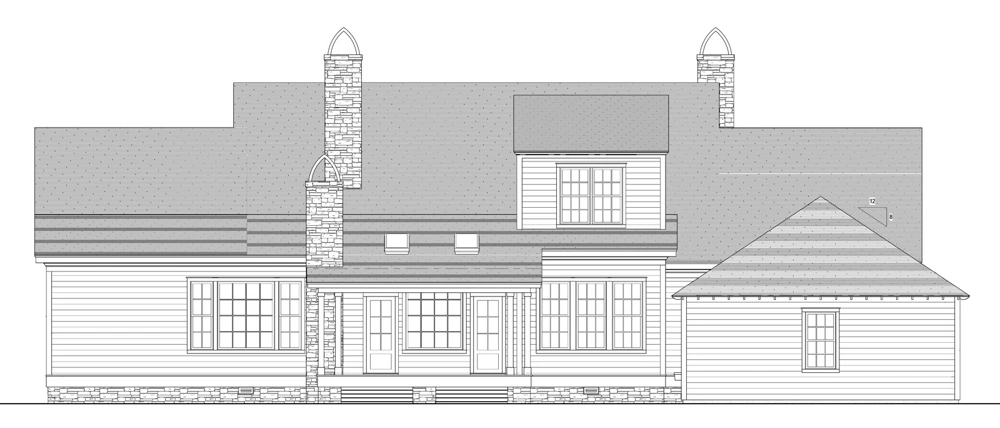

New Sand Mountain

  • Plan Package

4,840.00 4,840.00 4840.0 USD

0.00

Option not available

This combination does not exist.

Add to Cart


View our Terms and Conditions

CAD File
Source drawing files of the plan. This package is best provided to a local design professional when customizing the plan with architect.

PDF Plan Set
Downloadable file of the complete drawing set.  Required for customization or printing large number of sets for sub-contractors.

Construction Set
Five complete sets of construction plans, when building the house as-is or with minor field adjustments.  This set is stamped with a copyright.

Pricing Set
Recommended for construction bids or pricing. Stamped "Not For Construction".  The purchase price can be applied toward an upgrade to other packages of the same plan.

Planning Set
For planning purposes only and Stamped "Not for Construction." This set is ideal for planning modifications or verifying furniture sizes in rooms.
