Plan Details

Specifications


Floors: 2
Bedrooms: 3
Bathroom: 3.5
Foundation(s): Crawlspace

Square Feet


Main Floor: 1,734
Upper Floor: 859
Total Conditioned: 2,593
Future Space: 469
Front Porch: 106
Rear Porch: 296

Dimensions


Width: 60'-6"
Depth: 65'-10"
Height: 29'-7"
House Levels:
Level Name Ceiling Heights
Main Floor 10'-0"
2nd Floor 9'-1"

Construction


Wall Construction: 2x4
Exterior Finish: Board & Batten
Roof Construction: Rafter
Roof Pitch: 12:12

Features


Kitchen: Island, Snack, Pantry
Master Suite: Tub, Double Sink, Shower, Sitting Area, Double Doors, Private Toilet, Walk-in Closet
Additional: Fireplace, Loft, Porch, Bonus
Garage:
Type Size
Attached 2 - Stall

Description


With a spacious, open floor plan and well-balanced exterior proportions, the Alexander Place features functional design inside an attractive package.

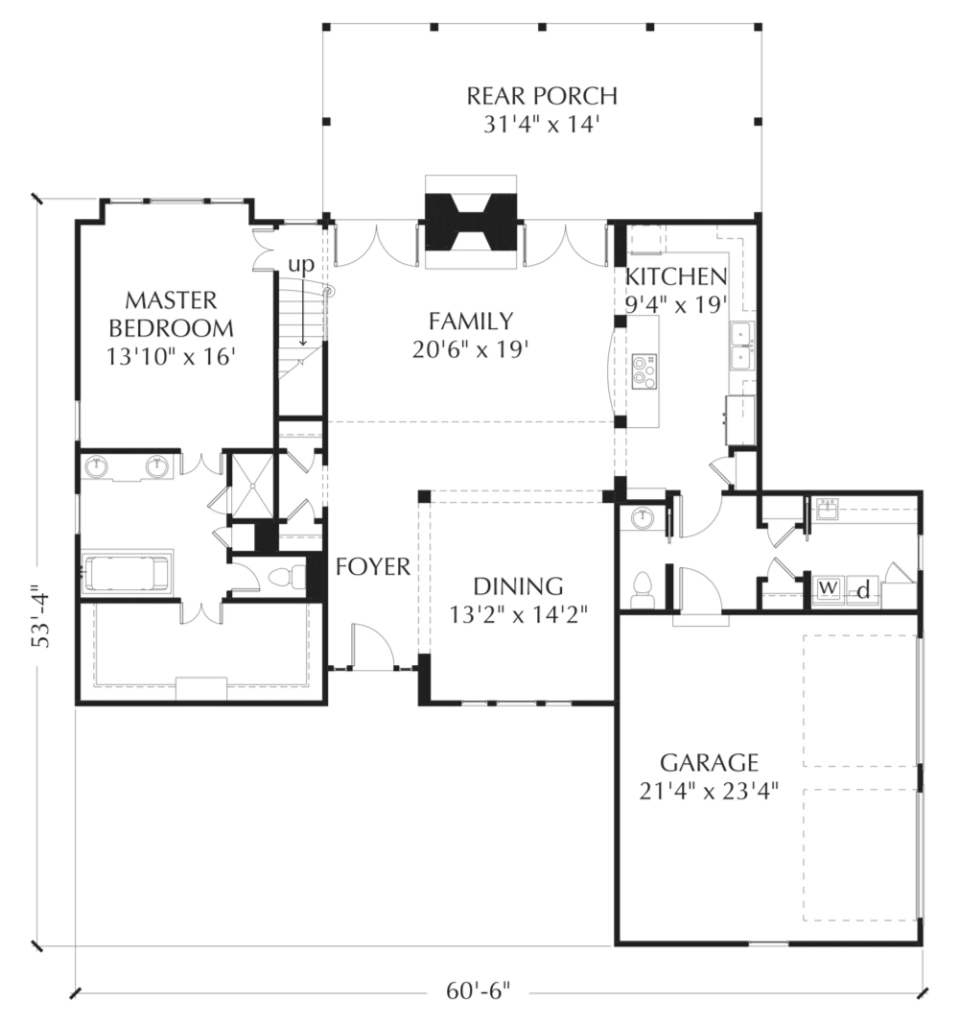

The vaulted Family Room is open to both the Kitchen and Dining Room while the main level Master Suite features a generously-sized bath and walk-in closet.

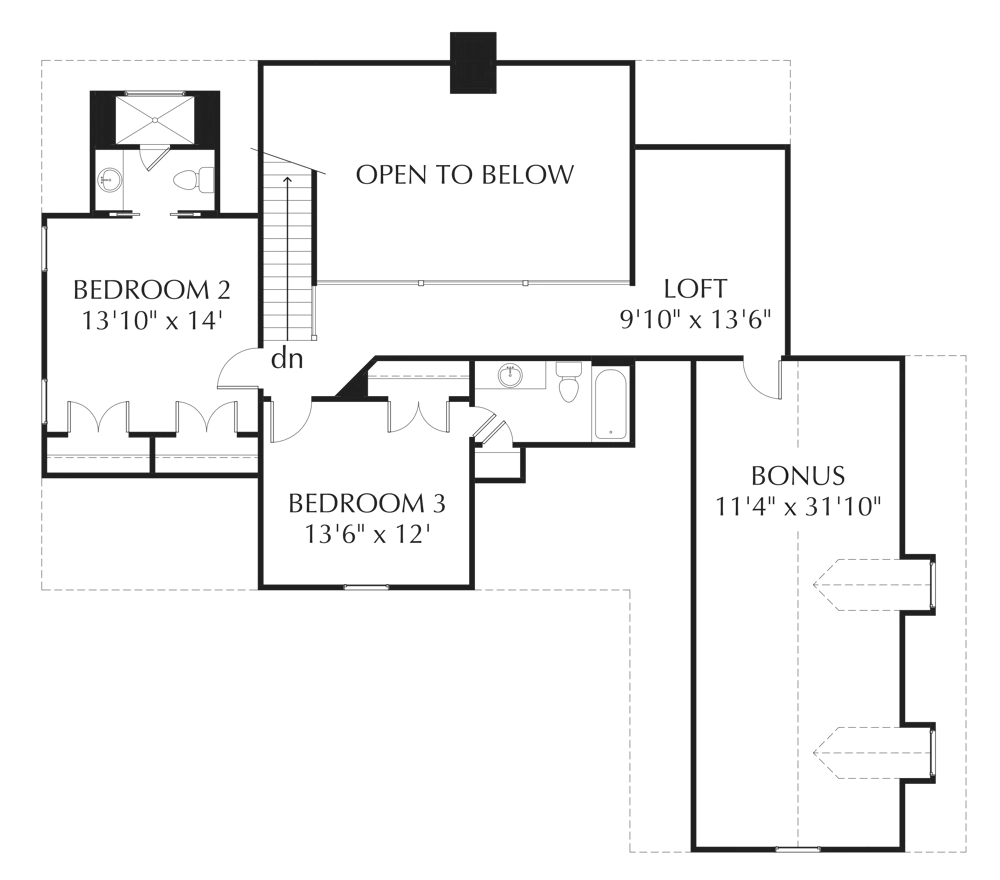

Upstairs, an open balcony overlooks the space below and leads to two additional bedrooms, each with it's own private bath. A cozy loft and optional bonus space provide ample room to expand.

Alexander Place

  • Plan Package

2,600.00 2,600.00 2600.0 USD

0.00

Option not available

This combination does not exist.

Add to Cart


View our Terms and Conditions

CAD File
Source drawing files of the plan. This package is best provided to a local design professional when customizing the plan with architect.

PDF Plan Set
Downloadable file of the complete drawing set.  Required for customization or printing large number of sets for sub-contractors.

Construction Set
Five complete sets of construction plans, when building the house as-is or with minor field adjustments.  This set is stamped with a copyright.

Pricing Set
Recommended for construction bids or pricing. Stamped "Not For Construction".  The purchase price can be applied toward an upgrade to other packages of the same plan.

Planning Set
For planning purposes only and Stamped "Not for Construction." This set is ideal for planning modifications or verifying furniture sizes in rooms.
