Plan Details


Floors: 2
Bedrooms: 5
Bathroom: 6.0
Foundation(s): Crawlspace

Square Feet

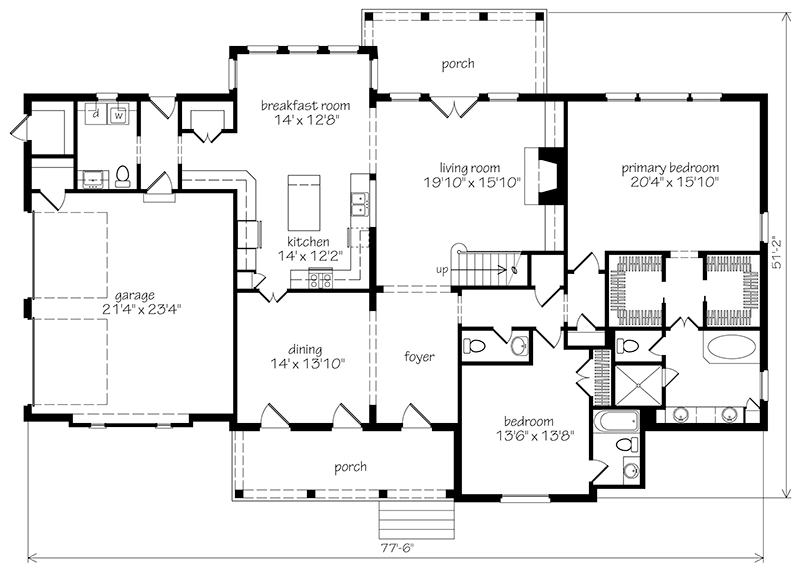

Main Floor: 2,321

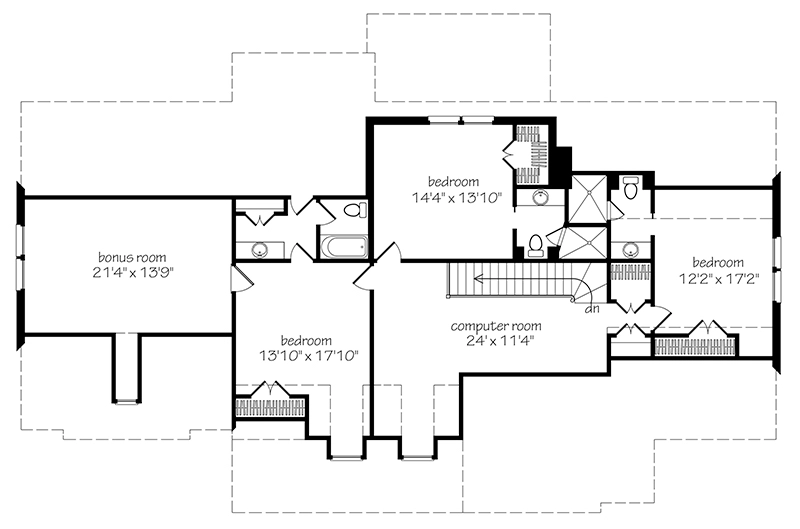

Upper Floor: 1,339
Total Conditioned: 3,660
Future Space: 334
Front Porch: 165
Rear Porch: 165


Width: 77'-6"
Depth: 51'-2"
Height: 29'
House Levels:
Level Name Ceiling Heights
Main Floor 10'-0"
2nd Floor 9'-1"


Wall Construction: 2x4
Exterior Finish: Brick, Lap Siding
Roof Construction: Rafter
Roof Pitch: 10:12, 12:12


Kitchen: Island, Snack, Pantry, Breakfast Nook
Master Suite: Tub, Double Sink, Shower, Private Toilet, Walk-in Closet
Additional: Fireplace, Porch, Bonus, Computer Room
Type Size
Attached 2 - Stall

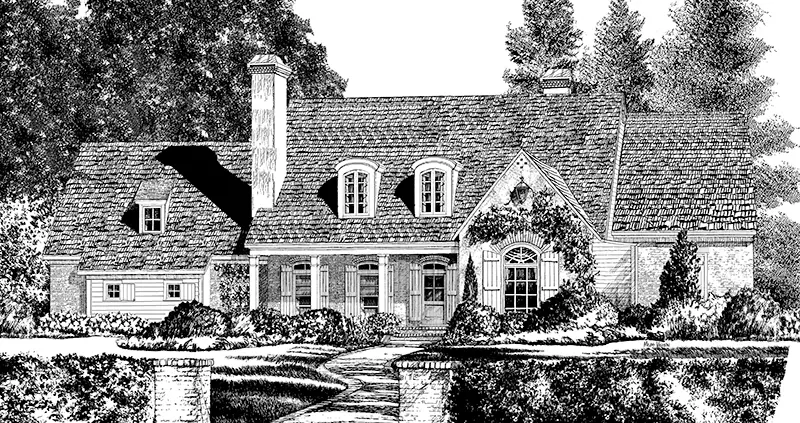

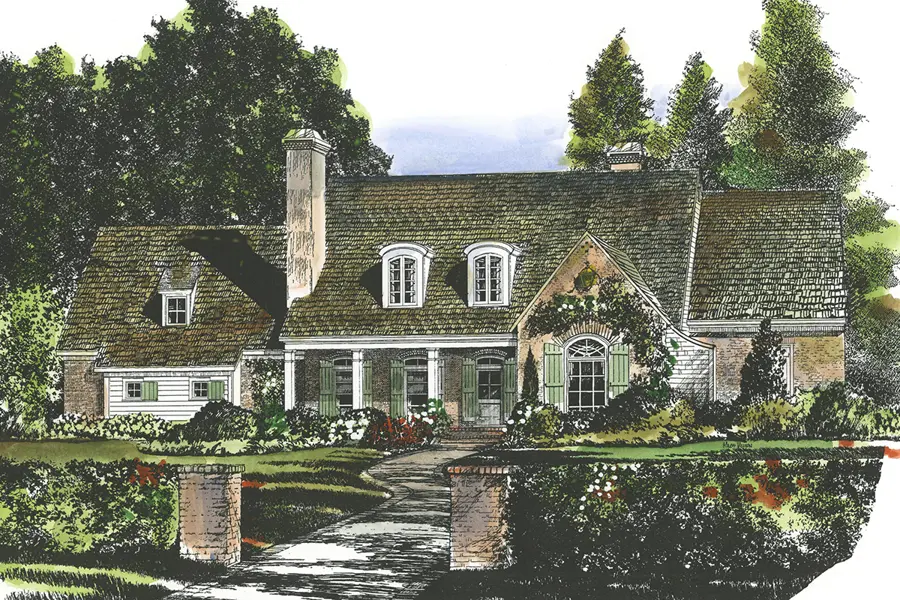

Belfield Bend is a classically inspired design with proportion, character and grace. Beyond the façade, the floor plan is balanced and comfortable, with living spaces offering flexibility while the bedrooms offer privacy and seclusion.

Belfield Bend

  • Plan Package

3,400.00 3,400.00 3400.0 USD


This combination does not exist.

Add to Cart

View our Terms and Conditions

PDF Plan Set
Downloadable file of the complete drawing set.  Required for customization or printing large number of sets for sub-contractors.

Construction Set
Five complete sets of construction plans, when building the house as-is or with minor field adjustments.  This set is stamped with a copyright.

Pricing Set
Recommended for construction bids or pricing. Stamped "Not For Construction".  The purchase price can be applied toward an upgrade to other packages of the same plan.

Study Plan
For planning purposes only, this downloadable letter-sized PDF includes floor plans, exterior elevations, and color photography (if available).
