Plan Details

Specifications


Floors: 1
Bedrooms: 3
Bathroom: 3.5
Foundation(s): Crawlspace

Square Feet


Main Floor: 3,074
Bonus (Finished): 828
Total Conditioned: 3,074
Future Space: 340
Front Porch: 319
Rear Porch: 642

Dimensions


Width: 86'-4"
Depth: 72'-4"
Height: 30
House Levels:
Level Name Ceiling Heights
Main Floor 10'-0"
2nd Floor 9'-1"

Construction


Wall Construction: 2x4
Exterior Finish: Lap Siding, Shake
Roof Construction: Rafter
Roof Pitch: 10:12

Features


Kitchen: Island, Pantry, Breakfast Nook
Master Suite: Tub, Double Sink, Shower, Sitting Area, Porch, Private Toilet, Walk-in Closet, Fireplace
Additional: Fireplace, Porch, Bonus, Screened Porch
Garage:
Type Size
Attached 2 - Stall

Description

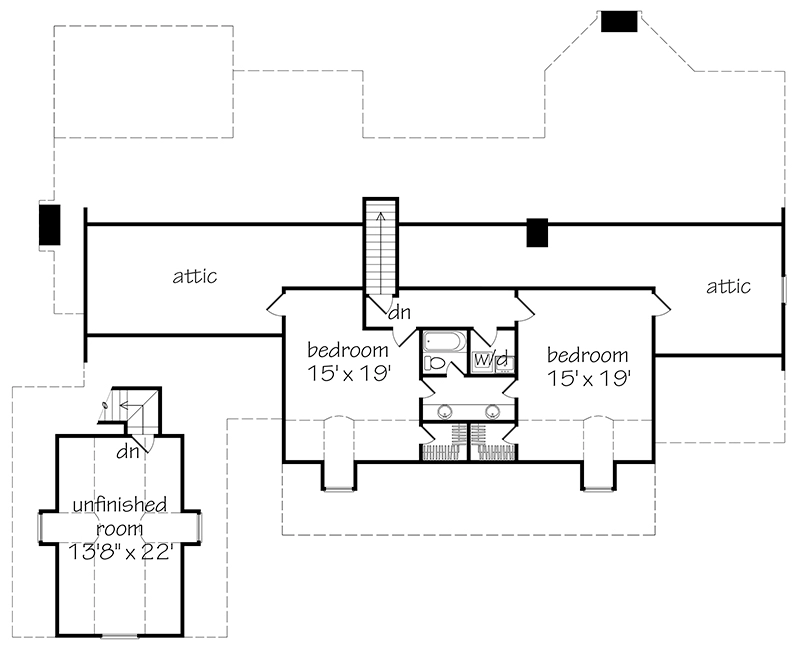

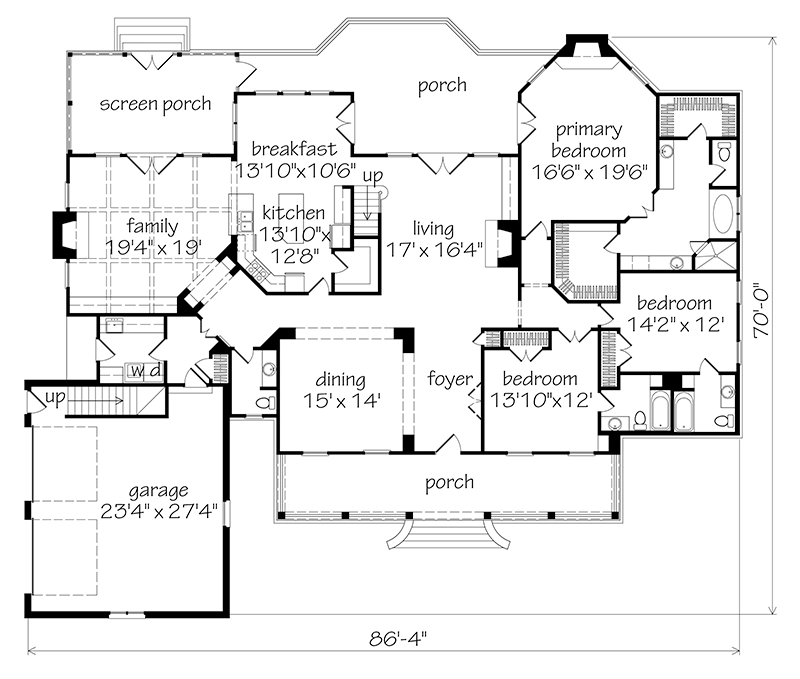

Carrington Court is big on curb appeal and options. The flexible 3,074-square-foot floor plan features 3 bedrooms and 3-1/2 baths and offers the opportunity to add 2 bedrooms and another bathroom on the second floor and a bonus room above the two-car garage.

A broad front porch with box columns frames an inviting entryway that sports sidelights and an arched transom. Curve-top dormers and a shingled roof gable create a lively rhythm on the front exterior. The front foyer leads into a formal dining room and central living room that are sophisticated entertaining spaces.

Day-to-day life is made more intimate in the combined kitchen and breakfast alcove that open into the family room. A large porch that is partially screened outside the family room stretches across the rear of the house.

Carrington Court

  • Plan Package

2,920.00 2,920.00 2920.0 USD

0.00

Option not available

This combination does not exist.

Add to Cart


View our Terms and Conditions

CAD File
Source drawing files of the plan. This package is best provided to a local design professional when customizing the plan with architect.

PDF Plan Set
Downloadable file of the complete drawing set.  Required for customization or printing large number of sets for sub-contractors.

Construction Set
Five complete sets of construction plans, when building the house as-is or with minor field adjustments.  This set is stamped with a copyright.

Pricing Set
Recommended for construction bids or pricing. Stamped "Not For Construction".  The purchase price can be applied toward an upgrade to other packages of the same plan.

Planning Set
For planning purposes only and Stamped "Not for Construction." This set is ideal for planning modifications or verifying furniture sizes in rooms.
