Plan Details

Specifications


Floors: 2
Bedrooms: 3
Bathroom: 3.5
Foundation(s): Walkout Basement

Square Feet


Main Floor: 1,934
Upper Floor: 1,064
Lower Floor: 1,934
Total Conditioned: 2,998
Future Space: 355

Dimensions


Width: 81'
Depth: 81'-4"
Height: 29'
House Levels:
Level Name Ceiling Heights
Main Floor 9'-1"
2nd Floor 8'-4"
Lower Level 8'-11"

Construction


Wall Construction: 2x4
Exterior Finish: Shake
Roof Construction: Rafter
Roof Pitch: 14:12, 6:12

Features


Kitchen: Island, Pantry
Master Suite: Tub, Double Sink, Shower, Double Doors, Private Toilet, Walk-in Closet
Additional: Fireplace, Loft, Porch, Bonus, Deck, Screened Porch
Garage:
Type Size
Detached 2 - Stall

Description

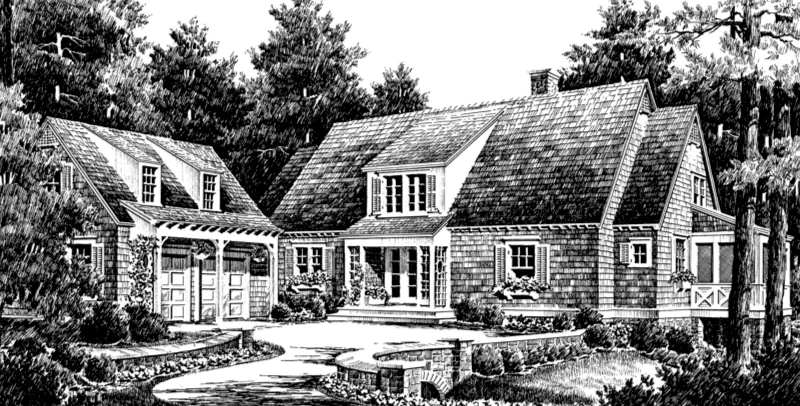

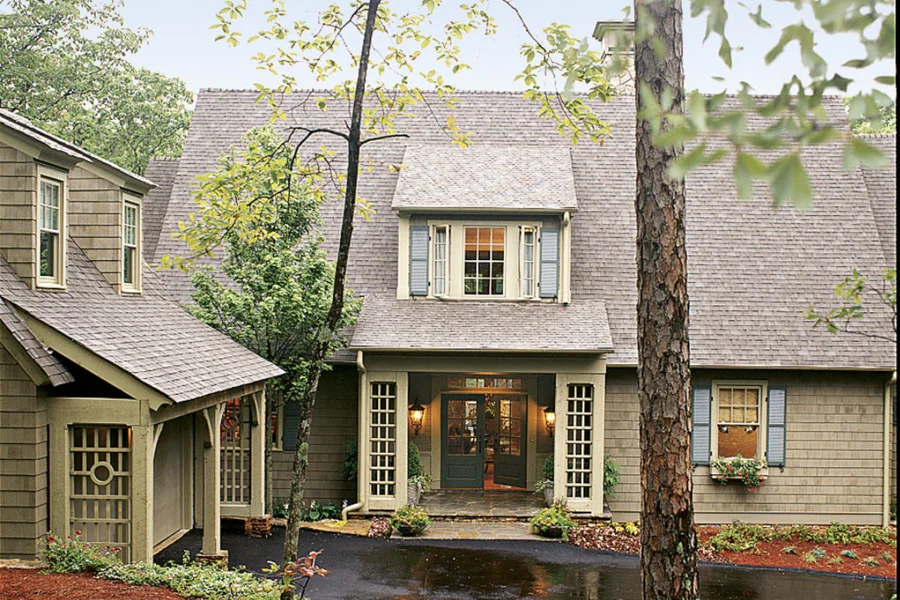

1997 Southern Living Idea House, Chestnut Hill combines the relaxed exterior of a mountain retreat with an open and modern floor plan.

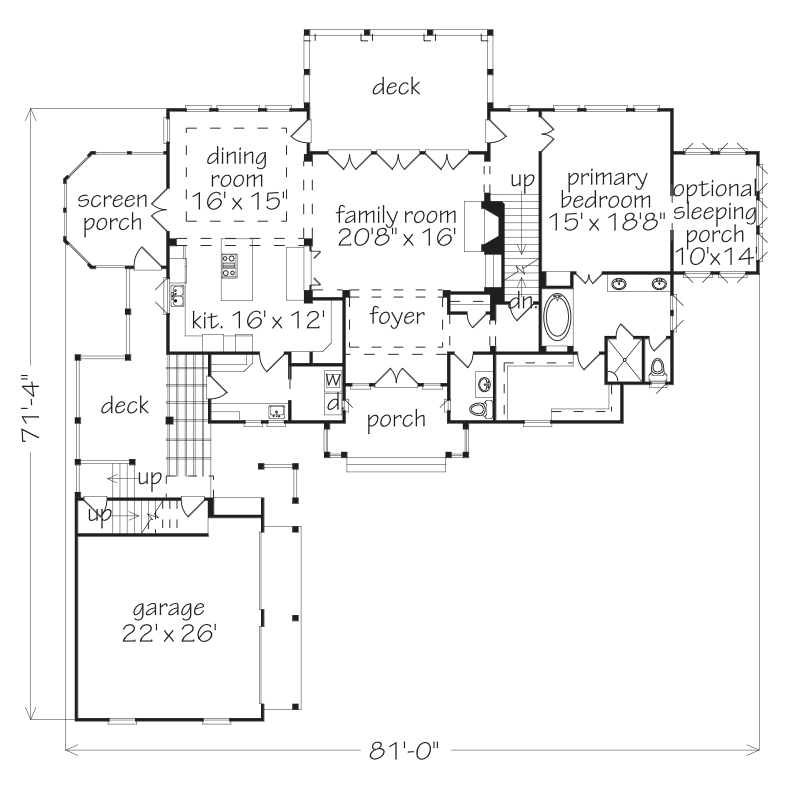

The main living areas are toward the rear of the house, where large windows provide magnificent views to the outdoors. The family room is enhanced by a vaulted ceiling and three sets of French doors that open onto the rear deck. A screened porch off the dining room allows for elegant outdoor dining.

Upstairs, the two bedrooms, connected by a gallery, each have a private bath.

Chestnut Hill

  • Plan Package

3,000.00 3,000.00 3000.0 USD

0.00

This combination does not exist.

Add to Cart


View our Terms and Conditions


PDF Plan Set
Downloadable file of the complete drawing set.  Required for customization or printing large number of sets for sub-contractors.

Construction Set
Five complete sets of construction plans, when building the house as-is or with minor field adjustments.  This set is stamped with a copyright.

Pricing Set
Recommended for construction bids or pricing. Stamped "Not For Construction".  The purchase price can be applied toward an upgrade to other packages of the same plan.

Study Plan
For planning purposes only, this downloadable letter-sized PDF includes floor plans, exterior elevations, and color photography (if available).
