Plan Details

Specifications


Floors: 2
Bedrooms: 3
Bathroom: 2.5
Foundation(s): Walkout Basement

Square Feet


Main Floor: 890
Upper Floor: 596
Lower Floor: 870
Total Conditioned: 1,486

Dimensions


Width: 49'-4"
Depth: 30'
Height: 24'
House Levels:
Level Name Ceiling Heights
Main Floor 10'-0"
2nd Floor 8'-4"
Lower Level 8'-9"

Construction


Wall Construction: 2x4
Exterior Finish: Shake
Roof Construction: Rafter
Roof Pitch: 12:12

Features


Kitchen: Snack
Master Suite: Tub, Shower, Single Sink
Additional: Fireplace, Porch, Screened Porch

Description

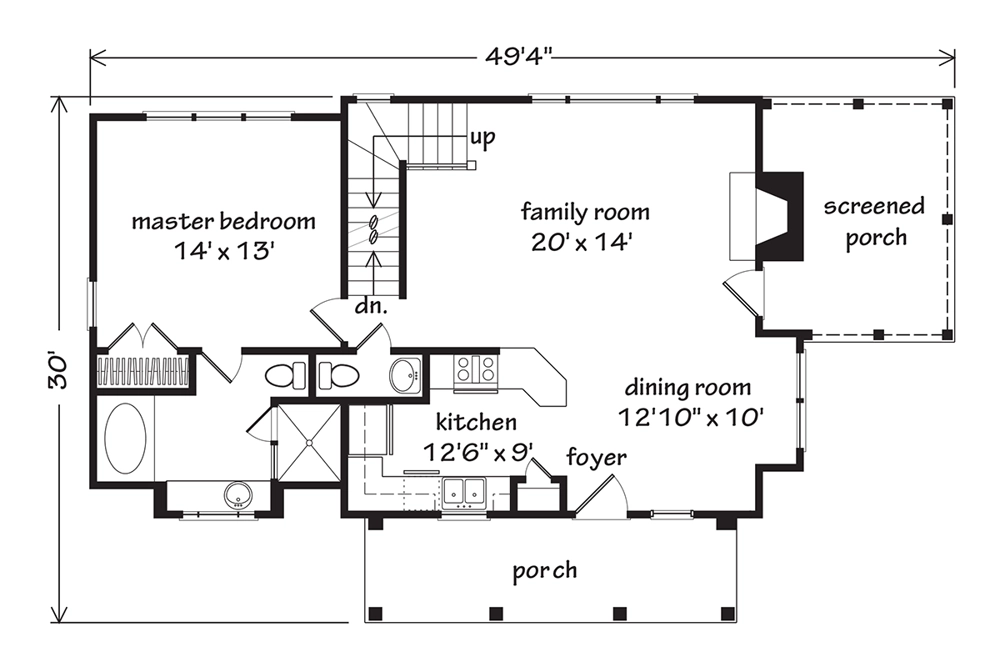

An open floor plan connects the dining room, kitchen, and living room. The spacious master bedroom is located on the first floor. An adjacent bath offers amenities such as a garden tub and separate shower.

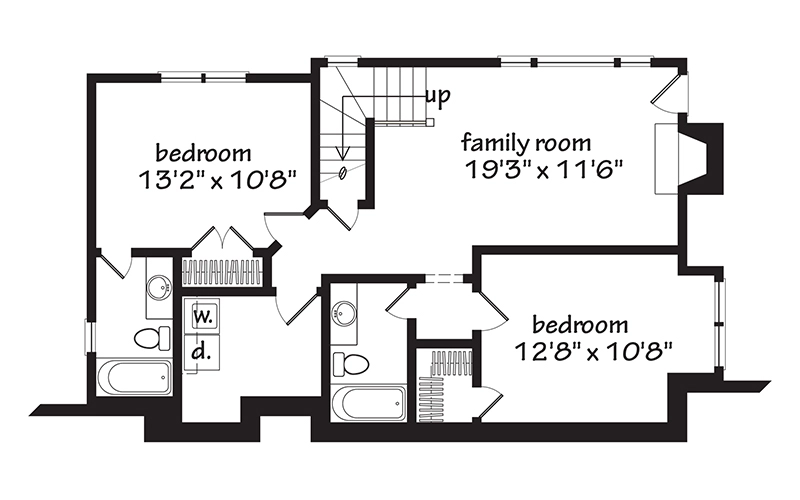

Optional terrace and loft levels are included with the plans. The terrace level, with 870 square feet, is perfect for a sloping or hilly lot. The loft area, with 468 square feet, is open to look down on the second floor. With an additional bath, it can provide a child's play area or a teenager's retreat.

Living room has a fireplace and access to a screened porch.

Heather Place

  • Plan Package

2,320.00 2,320.00 2320.0 USD

0.00

Option not available

This combination does not exist.

Add to Cart


View our Terms and Conditions

CAD File
Source drawing files of the plan. This package is best provided to a local design professional when customizing the plan with architect.

PDF Plan Set
Downloadable file of the complete drawing set.  Required for customization or printing large number of sets for sub-contractors.

Construction Set
Five complete sets of construction plans, when building the house as-is or with minor field adjustments.  This set is stamped with a copyright.

Pricing Set
Recommended for construction bids or pricing. Stamped "Not For Construction".  The purchase price can be applied toward an upgrade to other packages of the same plan.

Planning Set
For planning purposes only and Stamped "Not for Construction." This set is ideal for planning modifications or verifying furniture sizes in rooms.
