Plan Details


Floors: 1
Bedrooms: 3
Bathroom: 2.5
Foundation(s): Walkout Basement

Square Feet

Main Floor: 2,920
Total Conditioned: 2,920


Width: 76'-6"
Depth: 64'
Height: 27'
House Levels:
Level Name Ceiling Heights
Main Floor 9'-1"
Lower Level 8'-9"


Wall Construction: 2x4
Exterior Finish: Shake, Stone
Roof Construction: Rafter
Roof Pitch: 10:12


Kitchen: Island, Snack, Pantry
Master Suite: Tub, Double Sink, Shower, Porch, Double Doors, Private Toilet, Walk-in Closet
Additional: Fireplace, Porch
Type Size
Attached 2 - Stall

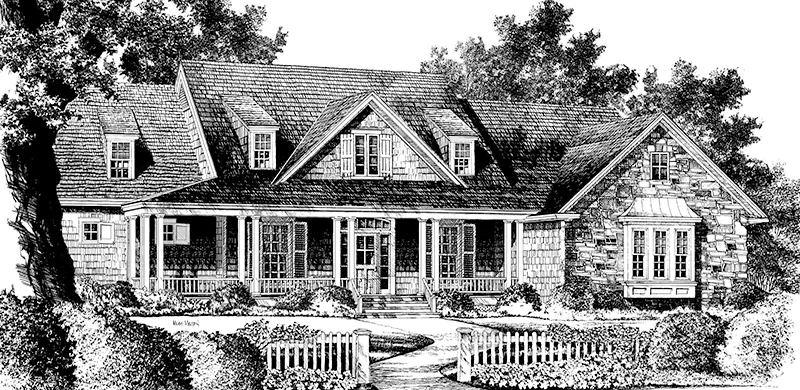

Classic styling and timeless details, including shingle siding and copper-topped bay windows, define the New Brookhaven.

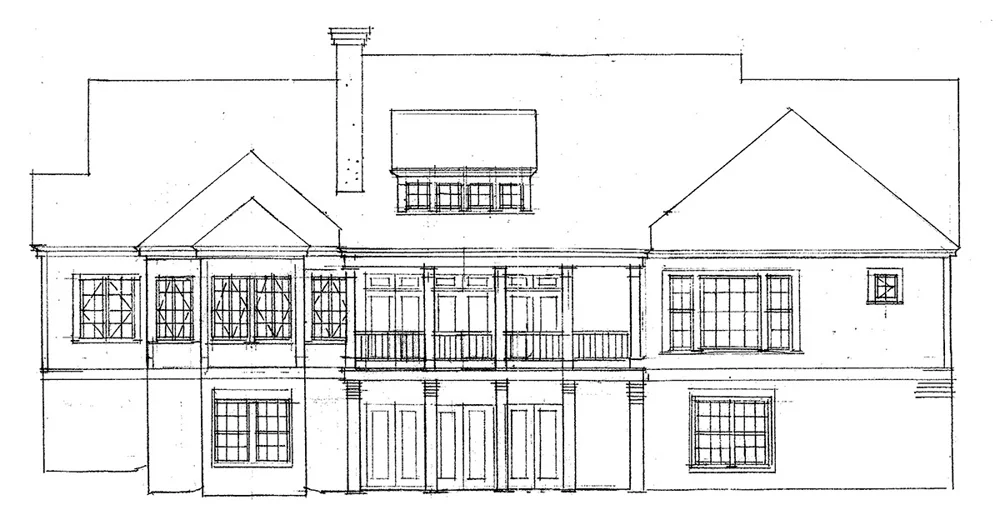

A wide, welcoming front porch is an inviting space for visiting with neighbors, while a rear covered porch calls out for relaxation.

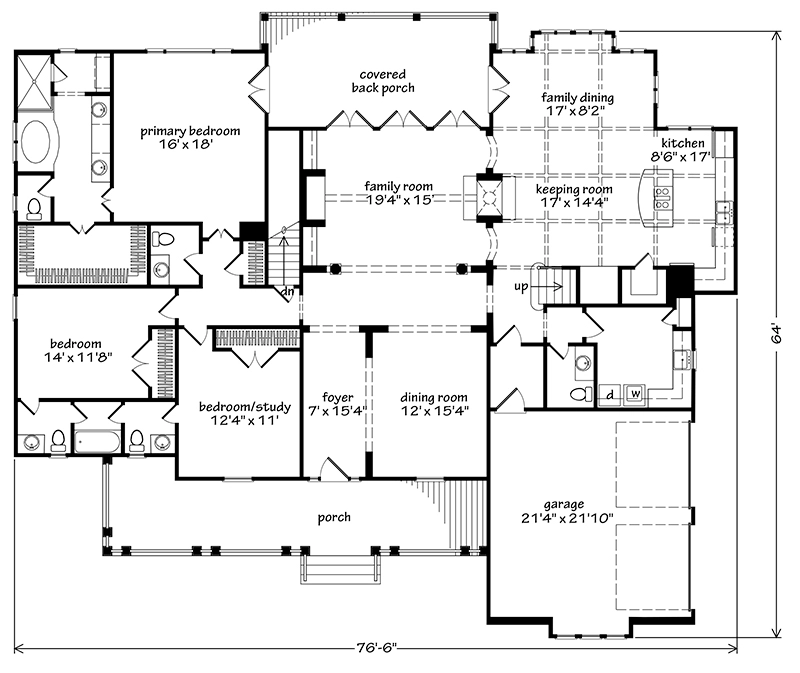

Inside, a two-sided fireplace separates the formal and casual living areas, which are generous in size yet comfortable and cozy. The sleeping wing is secluded from the living areas, and features a well-appointed Master Bedroom with double-door access to the rear covered porch and a cavernous Walk-in Closet. Two additional bedrooms share a jack-and-jill bath.

New Brookhaven

  • Plan Package

1,840.00 1,840.00 1840.0 USD


This combination does not exist.

Add to Cart

CAD File
Source drawing files of the plan. This package is best provided to a local design professional when customizing the plan with architect.

PDF Plan Set
Downloadable file of the complete drawing set. Required for customization or printing large number of sets for sub-contractors.

Construction Set
Five complete sets of construction plans, when building the house as-is or with minor field adjustments. This set is stamped with a copyright.

Pricing Set
Recommended for construction bids or pricing. Stamped "Not For Construction". The purchase price can be applied toward an upgrade to other packages of the same plan.

Planning Set
For planning purposes only and Stamped "Not for Construction." This set is ideal for planning modifications or verifying furniture sizes in rooms.
