Plan Details

Specifications


Floors: 2
Bedrooms: 3
Bathroom: 3.5
Foundation(s): Crawlspace

Square Feet

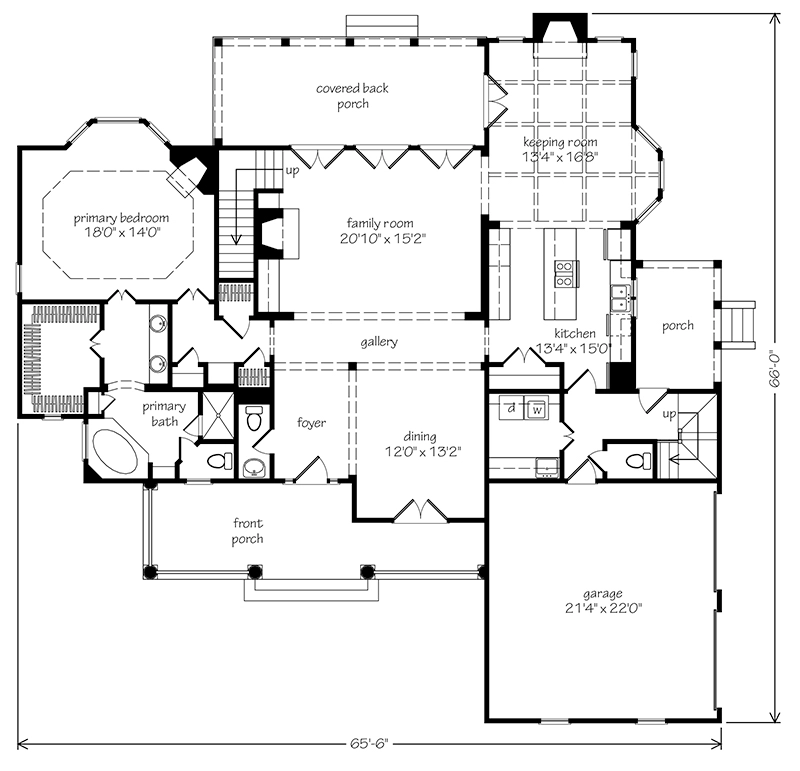

Main Floor: 2,058

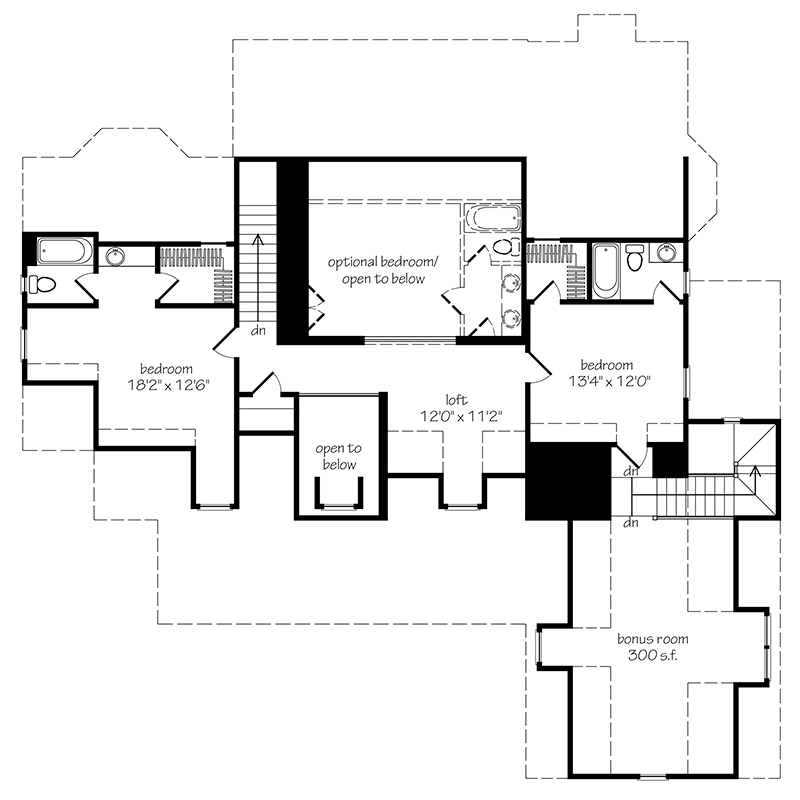

Upper Floor: 800
Total Conditioned: 2,858

Dimensions


Width: 65'-6"
Depth: 66'
Height: 27'
House Levels:
Level Name Ceiling Heights
Main Floor 9'-1"
2nd Floor 8'-4"

Construction


Wall Construction: 2x4
Exterior Finish: Shake
Roof Construction: Rafter
Roof Pitch: 12:12

Features


Kitchen: Island, Snack, Pantry
Master Suite: Tub, Double Sink, Shower, Sitting Area, Double Doors, Private Toilet, Walk-in Closet, Fireplace
Additional: Fireplace, Loft, Porch, Bonus
Garage:
Type Size
Attached 2 - Stall

Description


New Holly Springs

  • Plan Package

1,840.00 1,840.00 1840.0 USD

0.00

Option not available

This combination does not exist.

Add to Cart


View our Terms and Conditions

CAD File
Source drawing files of the plan. This package is best provided to a local design professional when customizing the plan with architect.

PDF Plan Set
Downloadable file of the complete drawing set.  Required for customization or printing large number of sets for sub-contractors.

Construction Set
Five complete sets of construction plans, when building the house as-is or with minor field adjustments.  This set is stamped with a copyright.

Pricing Set
Recommended for construction bids or pricing. Stamped "Not For Construction".  The purchase price can be applied toward an upgrade to other packages of the same plan.

Planning Set
For planning purposes only and Stamped "Not for Construction." This set is ideal for planning modifications or verifying furniture sizes in rooms.
